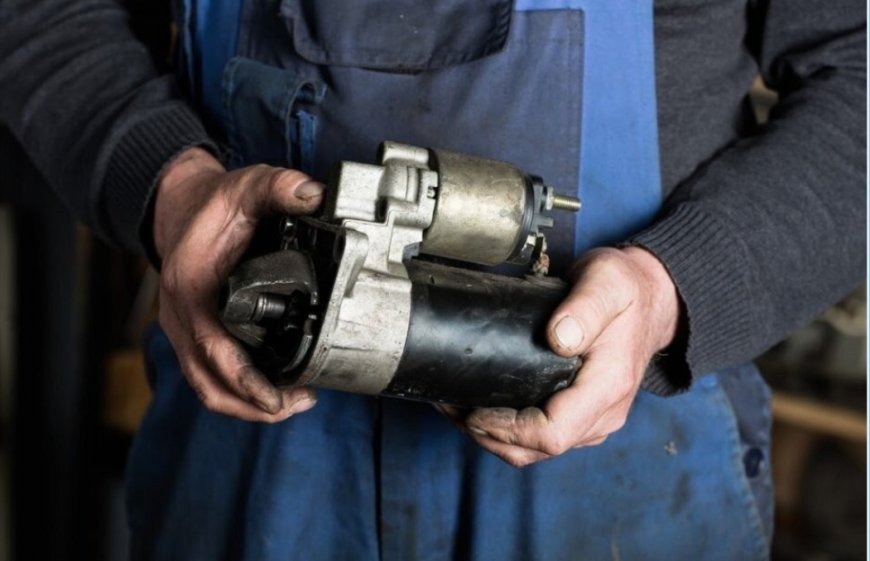

How to Repair the Faulty Starter? 10-Minute Quick Guide

The faulty starter motor can lead to the whole job stagnation, delay the work period, and cause the shutdown loss. But the good news is, as long as you take the correct steps, you will be able to diagnose, repair, or replace the starter motor, so that your heavy equipment can resume functioning in a few minutes. In this guidance, we will bring you to understand the starter motor’s function, fault cause, common problem-solving method, and how to ensure the starter motor always maintains a good operational state.

Why Does the Starter Matter?

Think of your engine as the muscle of your machine, think of the starter motor as its ignition spark: In those off-road machineries — like excavator, tractor, loader, or generator — the starter motor uses the battery’s electricity to overcome the engine’s inner resistance and to let the combustion start.

Once the ignition key or button is engaged, the starter solenoid will make its starting action, sending the battery current toward the starter motor. This drives a small pinion gear to engage with the engine’s flywheel and crank it over.

Without this kick‑start mechanism, your engine remains silent — no crank, no work. That’s why an efficient starter is fundamental to keeping field operations seamless, especially when your equipment runs in tough, dusty, or high‑vibration environments.

What Causes Starter Problems?

Starter motors are built tough, but off‑road environments accelerate wear and tear. Common causes include:

Even just one very small electrical resistance or one oil leak can already cause your starter to perform in an under-strength way. For those owners of tractors, wheel loaders, or mini excavators, doing regular checking can stop the starter from making a complete failure when you are doing those important working moments.

How to Repair the Faulty Starter

Repairing the starter is not as complicated as it looks: Only if you do careful inspection, use basic tools, and know the machine’s design, can you bring back its function, or decide when replacing it is the wiser choice.

1. Diagnose Before You Disassemble

First, you must separate whether the trouble comes from the battery, from the wiring, or from the starter body itself.

• Use one voltmeter: one healthy 12V battery in resting time should show about 12.6 volts.



• Check those cables: must confirm terminals are clean, tightened enough, and without that corrosion thing.



• Do one “bypass test”: just let the solenoid's two terminals jump together for one short moment. If the engine can crank, then the problem is inside the ignition circuit or the solenoid.



If all these aspects have already been checked, but the issue still stubbornly remains, then your starter mostly needs one service.

2. Remove the Starter Safely

1. Disconnect the negative battery terminal.



2. Locate the starter — in off‑road machines, it’s usually at the lower side of the engine block near the flywheel housing.



3. Remove any obstructing parts (hoses, panels, cooling fans).



4. Unbolt the starter — typically 3‑4 bolts — and detach wiring carefully.



Keep small parts in a tray to avoid mix‑ups during reassembly.

3. Disassemble and Inspect

Once removed, clean the housing and examine visually:

• Armature and field windings: You must look whether got burned spots, broken wires, or insulation already become loose.



• Brushes: If already worn to only half of their original length, then they need to be replaced.



• Bearings or bushings: Use gentle shaking on the shaft — if you get any wobbling, then it means they are already worn.



• Pinion gear and drive mechanism: Must check if the teeth have chipped or alignment is already not correct.



• Solenoid: Make one test for continuity between those terminals.



If critical internal parts show severe damage or corrosion, replacement is usually more cost‑effective.

4. Repair or Replace Components

For minor wear:

1. Sand the commutator with fine grit sandpaper.



2. Clean between segments using a plastic or hard brush (never metal).



3. Replace worn brushes using a small soldering gun or crimping tool.



4. Lubricate bushings lightly with engine oil before fitting them back.



If the starter’s coils, armature, or solenoid are burned or cracked, skip the rebuild and purchase a new one from a reliable one-stop online shop like FridayParts. It often provides discounts and shares OEM quality.

5. Reassemble and Test

Reassembly follows the reverse of removal — here’s how:

• Install new brushes, springs, and bushings properly.



• Tighten housing screws uniformly.



• Connect the motor cable back to the solenoid.



• Spin the armature manually to confirm it moves freely without noise.



Before reinstalling it on your machine, bench‑test the motor:

Once confirmed, reinstall and reconnect battery cables.

6. Quick Summary of Steps

1. Check the power supply and wiring



2. Disconnect the battery for safety



3. Remove the faulty starter carefully



4. Inspect and clean core components



5. Replace brushes or bearings as needed



6. Bench-test before reinstallation



7. Reinstall and test on the machine



Tips for Maintaining Your Starter

A small bit of maintenance can walk a very long distance, especially under those off-road conditions where mud, dust, and bumping are always making challenges, and if you do not make timely stops, the consequences is really cannot be imagined.

1. Maintain Electrical Health

Keep those batteries in a charging state and let the terminals stay clean. Low voltage will let the starter become overheated or even get burned out.

2. Inspect Regularly

When doing an oil change or some routine service, you must look at the mounting bolts and wiring to see whether they have become loose or have that corrosion.

3. Avoid Prolonged Cranking
If your engine doesn’t start within 5–8 seconds, stop. Continuous cranking overheats both the solenoid and the armature.

4. Shield from Contaminants
Seal oil leaks immediately — leaking oil can seep into the starter housing, causing failure.

5. Use High‑Quality Replacements
Opt for aftermarket units that match OEM specifications: Choose those replacement units that can meet the OEM level. Those cheap rebuilding ones maybe cannot survive under the heavy cranking loads that are usual in off-road machinery.

By following these simple steps, you extend your starter’s life cycle, minimize downtime, and save maintenance costs. By following the above few simple steps, you can let the starter’s usage life become longer, reduce the downtime reach its smallest degree, and also save those maintenance costs.

Conclusion

When an engine won’t crank, it’s easy to panic. But most starter problems are swift to diagnose and faster to fix. With clean connections, regular inspection, and the right replacement, your off‑road equipment will continue starting strong day after day.
